GRAS 12BA, 12BE and 12BB CCP Power Modules with TEDS Support

Microphone power: CCP
Channel(s): 1, 2, or 4
TEDS via USB

12BA, 12BE and 12BB are 1-, 2- and 4-channel CCP power modules, respectively. They have SysCheck2™ and TEDS support and are powered by USB.

Technology

The GRAS 12BA, 12BE and 12BB  are, respectively, single- two- and four-channel USB-powered CCP power modules with TEDS support, and they are able to take full advantage of GRAS SysCheck2™-enabled microphones, such as GRAS 246AE.

These power modules provide power to microphone sets without signal degradation, gain modification, or attenuation.

This series excels as a simple and cost-effective interface between TEDS-enabled measurement microphones and any Audio Precision APx series analyzer, which will automatically extract TEDS data for seamless integration. Full SysCheck2TM functionality is also automatically available when connected to APx500 release v7.0 Measurement Software with GRAS 12BA, 12BE, or 12BB power modules and an Audio Precision APx series analyzer, or with an Audio Precision APx series analyzer with CCP and TEDS read capability.

However, these power modules can also be used with other brands.  In this case, a TEDS utility program provides access to TEDS data on a PC. Download TEDS utility program here. The SysCheck2 Software Development Kit is available from the microphone product pages.

Power for the 12Bx series is provided through a USB cable using a USB 2.0 or USB 3.0 port and a USB-C port on the power module.

If more channels are needed, multiple power modules can be used concurrently.







Specifications

Frequency response (±0.06 dB) (with 100 kΩ load)
Hz
10 to 20
Frequency response (±0.03 dB) (with 100 kΩ load)
Hz
20 - 200k
Inherent noise, input shortet, 10 Hz - 20kHz
µVrms
2
Overload indication
No
Temperature range, operation
°C / °F
0 to +45 / 32 to 1113
Temperature range, storage
°C / °F
-40 to +75 / -40 to 167
Humidity (non-condensing)
%
max. 90
Dimension including mounting ears (WxHxD)
mm / "
108 x 44.2 x 178.3 / 4.35 x 1.74 x 7.02
Channels, 12BA
1
Channels, 12BE
2
Channels, 12BB
4
CCP preamplifier supply @ +24 V
mA
4
Max input Voltage
Vp
24
USB
C
USB Power + 5 Vdc
A
0.5
Weight 12BA, 1 Ch
g / oz
397 / 14.0
Weight 12BR, 2 Ch
g / oz
425 / 18.0
Weight 12BB, 4 Ch
g / oz
494 / 15.3

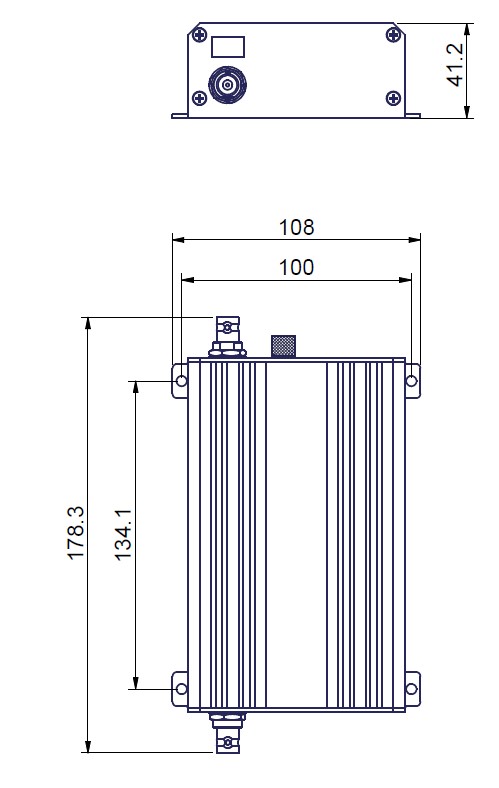

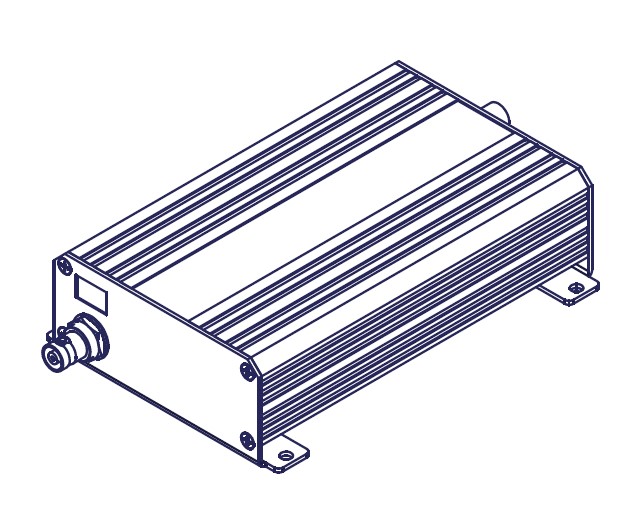

Dimensions

Ordering info

Included

GRAS 12BA, 12BE or 12BB                               CCP Power Module with USB Connection
-USB Cable

Optional

GRAS AA0033                       BNC-BNC cable, 1 meter
GRAS AA0034BNC-BNC cable, 2 meters
GRAS AA0035BNC-BNC cable, 3 meters
