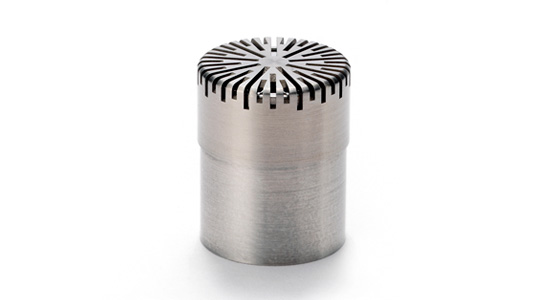

GRAS 40AN 1/2" Ext. Polarized Free-field Microphone, Low Frequency

Freq range: 0.5 Hz to 20 kHz
Dyn range: 14 dBA to 149 dB
Sensitivity: 50 mV/Pa

The 40AN is an IEC 61094 WS2F classified ½” externally polarized free-field, low-frequency microphone with rear-venting. The prepolarized equivalent is GRAS 40AZ.

Technology

Introduction

GRAS 40AN is a high-precision condenser microphone made according to IEC 61094-4 requirements. The 40AN’s design is based on the similar GRAS 40AF ½” free-field microphone, but optimized for low-frequency measurements. The cut-off frequency is as low as 0.5 Hz and obtained by modifying the equalization.

40AN is individually factory-calibrated and delivered with a calibration chart stating its specific open-circuit sensitivity, pressure, and corrected free-field frequency responses.

Typical applications and use

The low-frequency property combined with its high sensitivity and robust design make 40AN the obvious choice for infra-sound measurements—a fast growing discipline following the need for monitoring and reducing low-frequency noise from, for example, power and production plants and the increasing number of wind turbines.

Compatibility

The 40AN requires a standardized ½” or ¼” LEMO preamplifier and an input module that supports this technology with a 7-pin LEMO connector.

Note that to benefit from 40AN’s low frequency capabilities, it is important that the microphone preamplifier, analyzer input module, or sound level meter is designed to match 40AN.

System verification

For daily verification and check of your measurement setup, we recommend using a calibrator like GRAS 42AG Sound Level Calibrator.

For proper sensitivity calibration, we recommend using a pistonphone like GRAS 42AP.

Calibration

When leaving the factory, all GRAS microphones have been calibrated in a controlled laboratory environment using traceable calibration equipment. Depending on the use, measurement environment and internal quality control programs we recommend that the microphone is recalibrated at least once a year.

We offer two kinds of calibration as an optional after-sales service: GRAS Traceable Calibration and GRAS Accredited Calibration.

GRAS Traceable Calibration is a traceable calibration performed by trained personnel under controlled conditions according to established procedures and standards. This is identical to the rigorous calibration that all GRAS microphones are subjected to as an integral part of our quality assurance.

GRAS Accredited Calibration is performed by the GRAS Accredited Calibration Laboratory that has been accredited in accordance with ISO 17025 by DANAK, the Danish Accreditation Fund.

If you want a new microphone set delivered with an accredited calibration in stead of the default factory calibration, specify this when ordering.

Learn more at gras/calib.

Quality and warranty

All GRAS microphones are made of high-quality materials that will ensure life-long stability and robustness. The microphones are all assembled in verified clean-room environments by skilled and dedicated operators with many years of expertise in this field.

The microphone diaphragm, body, and improved protection grid are made of high-grade stainless steel, which makes the microphone resistant to physical damage, as well as corrosion caused by aggressive air or gasses.

This, combined with the reinforced gold-plated microphone terminal which guarantees a highly reliable connection, enables GRAS to offer 5 years warranty against defective materials and workmanship.

Service

If you accidentally damage the diaphragm on a GRAS microphone, we can—in most cases—replace it at a very reasonable cost and with a short turn-around time. This not only protects your investment, but also pleases your quality assurance department because you don’t have to worry about new serial numbers, etc.

Specifications

Polarization/Connection
200 V / Traditional
Frequency range (±1 dB)
Hz
1 to 10 k
Frequency range (±2 dB)
Hz
0.5 to 20 k
Dynamic range lower limit (microphone thermal noise)
dB(A)
14
Dynamic range lower limit with GRAS preamplifier
dB(A)
17
Dynamic range upper limit
dB
149
Dynamic range upper limit with GRAS preamplifier @ +28 V / ±14 V power supply
dB
142
Dynamic range upper limit with GRAS preamplifier @ +120 V / ±60 V power supply
dB
149
Open-circuit sensitivity @ 250 Hz (±1 dB)
mV/Pa
50
Open-circuit sensitivity @ 250 Hz (±1 dB)
dB re 1V/Pa
-26
Resonance frequency
kHz
14
Microphone cartridge capacitance, typ.
pF
16.5
Microphone venting
Rear
Temperature range, operation
°C / °F
-40 to 150 / -40 to 302
IEC 61094-4 Designation
WS2F
Temperature range, storage
°C / °F
-40 to 85 / -40 to 185
Temperature coefficient @250 Hz
dB/°C / dB/°F
-0.01 / -0.006
Humidity range non condensing
% RH
0 to 90
Static pressure coefficient @250 Hz
dB/kPa
-0.011
Humidity coefficient @250 Hz
dB/% RH
-0.001
Influence of axial vibration @1 m/s²
dB re 20 µPa
62
CE/RoHS compliant/WEEE registered
Yes / Yes, Yes
Weight
g / oz
6.5 / 0.229

Typical frequency response

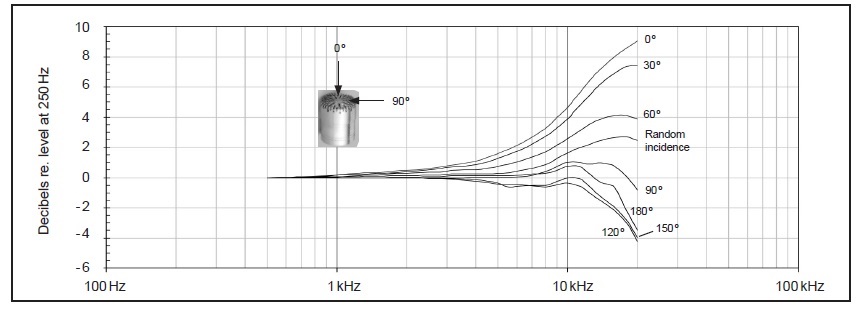

Free-field corrections for different angles of incidence

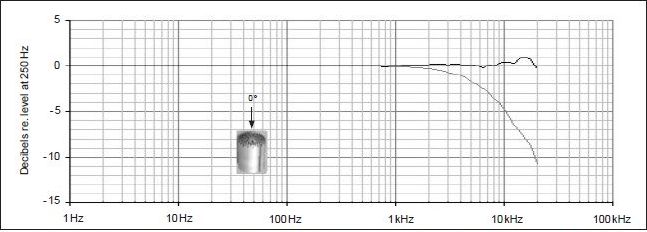

Low-frequency response

GRAS Sound & Vibration reserves the right to change specifications without notice.

Dimensions

Ordering info

Optional items

GRAS AF0008

Adapter for ¼” preamplifier and ½” microphone

GRAS GR0010

Adapter for ¼” preamplifier and ½” microphone

GRAS RA0001

Right-angled (90°) adapter for ½” microphone and ¼” preamplifier

GRAS RA0003

Adapter for ¼” preamplifier and ½” microphone

GRAS RA0016

20 dB Attenuator for externally polarized ½” microphones

GRAS RA0122

Random Incidence Corrector

GRAS CA0001

Traceable Calibration of Microphone

GRAS CA2001

Accredited Calibration of Microphone

GRAS Sound & Vibration reserves the right to change accessories without notice.
