GRAS RA0357 Random Incidence Corrector for 146AE



From free-field to random incidence in a second

 For years, automotive engineers have been performing many different types of measurements in the same automotive test setup. Being forced to make sacrifices to either their data quality or be inefficient in their test setup. The 146AE is designed as a free-field microphone, which compensates for its own presence in the sound field. However, with the RA0357 random incidence corrector, it is possible quickly to change the response from free-field to random incidence. The RA0357 adds flexibility to the already versatile rugged automotive microphone. The random incidence corrector can be mounted on the fly and saves you time setting up, conducting and evaluating your entire test setup.

View the flyer

GRAS RA0357 is a random incidence corrector for 146AE. With RA0357 mounted, 146AE can be used as a random incidence microphone up to 10 kHz.

Technology

Introduction

RA0357 is a random-incidence corrector for use with GRAS 146AE with the blue protection grid mounted. When it is mounted on the grid of the 146AE free-field microphone, the combination complies with ANSI Standard S1.4 Type 1 for diffuse field measurements in the audio-frequency range.

Design

The combination is designed to measure the sound pressure as it existed before the microphone and corrector were introduced into a diffuse sound field. At higher frequencies, the presence of the microphone/corrector combination in the sound field will change the sound pressure. In general, this sound pressure will increase due to reflections and diffraction, but will vary with incidence angle. The RA0357 random-incidence corrector is designed so that its combination with a GRAS 146AE free-field microphone results in a diffraction response that compensates for the mechanical response of the free-field microphone, assuming that the sound waves arrive at random from all directions.

The RA0357 provides diffuse field correction up to 10 kHz.

Typical Applications

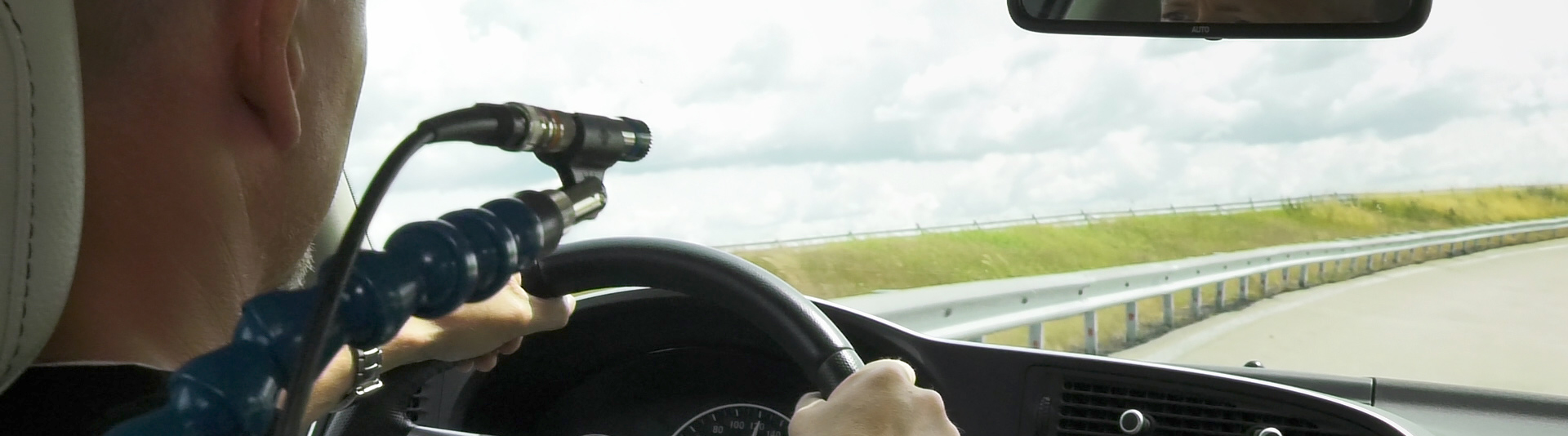

The RA0357 adds flexibility to the already versatile 146AE which now can also be used in sound fields where the sound comes from all directions, that is in diffuse sound fields. This makes it ideal for measurements in car cabin, engine compartments and similar closed cavities.







Specifications

Material
POM
Standard
IEC 60651, Appendix B

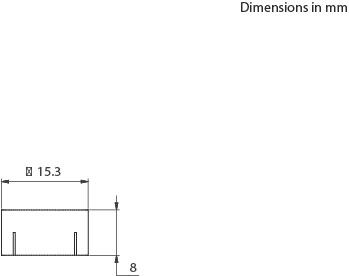

Dimensions
